NOV Fiberglass Systems

Premium Fiberglass Piping for

Industrial Applications

Corrosion doesn’t negotiate. Whether it’s aggressive chemicals, acids, caustics, abrasive slurries, or saltwater, traditional metal piping fails — leading to costly downtime, frequent replacements, and safety risks.

NOV Fiberglass Systems delivers high-performance, corrosion-resistant fiberglass piping engineered for the toughest industrial environments.

TRIVACO is your trusted authorized distributor for NOV Fiber Glass Systems — providing access to the world’s leading GRE (glass reinforced epoxy) and fiberglass piping solutions with local expertise and support.

Why Industrial Operators Choose NOV Fiberglass Piping

Maintenance-Free Performance
Immune to internal and external corrosion by design.
Long Service Life
Minimum 20-year design life (per ASTM D2992 Procedure B).
Lower Total Cost of Ownership
Lightweight, easy to install, and dramatically reduced maintenance vs. steel or other metals.
Chemical Resistance
Engineered for harsh industrial chemicals, acids, caustics, and abrasive services.
Proven Track Record
60+ years of fiberglass piping leadership.

NOV Fiberglass Product Lines

These systems are built for demanding chemical processing, power generation, water/wastewater, mining, and other corrosive industrial applications.

Key Features:

Sizes: 1½" – 42" | Pressures: up to 3,500 psi | Temps: up to 212°F
Pressures: Up to 580 psi (varies by product)
Temperatures: Up to 230°F (110°C) depending on resin system
Superior corrosion and abrasion resistance
Multiple joining methods: Matched Taper Bell & Spigot, Threaded & Bonded (T.A.B.), etc.
Lightweight with excellent flow characteristics

Silver Streak™

Specifically engineered for highly abrasive and corrosive services (e.g., flue gas desulfurization). Proprietary epoxy with abrasion-resistant additives. Rated to 225°F / 225 psig.

Green Thread™ HP

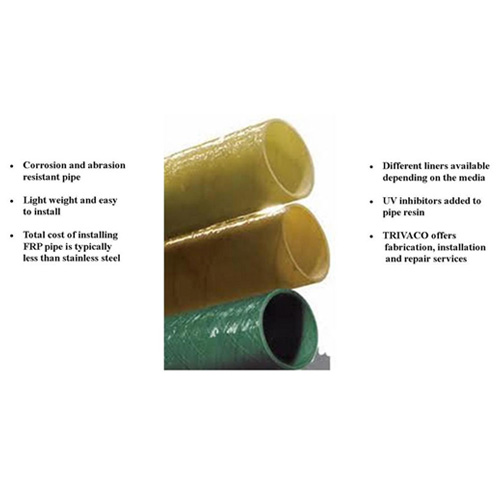

Excellent chemical resistance to dilute acids and caustics with a resin-rich liner.

Red Thread™ HP

Outstanding general corrosion resistance and long service life.

Bondstrand™
& Centricast™

Proven filament-wound and centrifugally cast solutions for a wide range of industrial fluid handling.

Ershigs™

Custom fiberglass fabrication for tanks, vessels, ducts, and large-diameter piping systems.

F-Chem™

Special-order vinyl ester piping system designed for highly corrosive chemical environments. Available in large diameters and rated for temperatures up to 225°F, making it ideal for demanding chemical processing applications.

Z-Core™

Designed for severe chemical service, including concentrated acids, hot caustics, and aggressive chemical mixtures. An excellent alternative to fluoropolymer-lined pipe and costly alloy materials.

Ceram Core™

Combines a high-alumina ceramic liner with an epoxy exterior for exceptional abrasion and corrosion resistance. Ideal for demanding slurry applications such as mining, dredging, ash handling, and other high-wear industrial processes.

The Numbers Speak for Themselves

100M+ ft

of Red Thread, Green Thread, and similar systems installed

20-year

minimum design life

60+ years

of GRE manufacturing experience

Global leader

in fiberglass piping

Industries We Serve

Chemical & Industrial Processing
Power Generation (including FGD systems)
Water & Wastewater
Mining & Minerals Processing
Marine & Offshore
Pulp & Paper

Why Source NOV Through Trivaco?

Premium Product Access
Full line of NOV Fiber Glass Systems industrial products
Application Expertise
Our team helps you select the right resin system, pressure rating, and joining method for your specific chemicals, temperatures, and pressures.
End-to-End Support
From specification to installation guidance.
Local Inventory & Quick Response
Faster lead times and technical support.

Access NOV Collateral

Corrosion Resistant Fiberglass Piping Systems

Talk to TRIVACO About a Better Piping System

For specifications, pricing, or project support, call 800.500.8889
