About Product

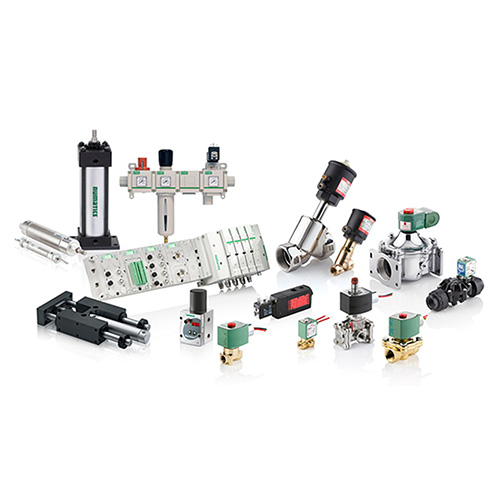

ASCO is the leader in the design, quality and manufacturing of solenoid valves. ASCO valves are designed to control the flow of air, gas, water, oil, and steam. Our extensive product lines include a broad range of solenoid valves, angle body piston valves, valve manifolds, cylinders, filters, regulators, lubricators and accessories. ​ASCO’s global scale increases speed to market and our deep ​expertise transforms ideas into measurable outco​mes. ASCO’s broad offerings in fluid control solutions integrate with hundreds of process, industrial, analytical and medical applications.

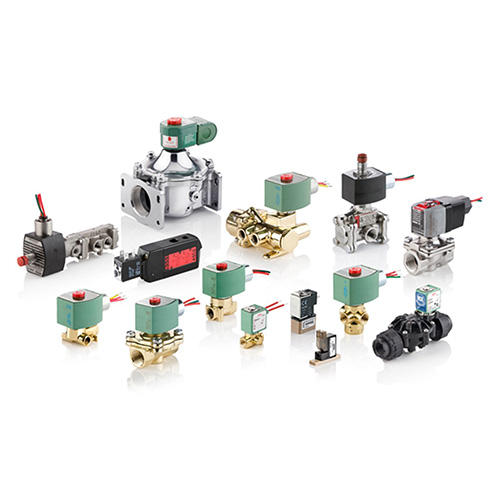

ASCO solenoid valves control critical flow of air, gas, water, oil, and steam in applications spanning numerous industries. Our portfolio ranges from two-position on/off valves to flow control systems that impact thousands of users. ASCO’s RedHat power management technology sets a new industry standard for reliability and power consumption, accepting both AC and DC voltages while improving performance. These 2-way, 3-way and 4-way solenoid valves can handle most fluid control applications and are now available with Class I, Division 2 approvals.

Some of the most popular among the ASCO valves selections are the following RedHat solenoid valves: the 8210, 8262, and the 8345. All three series models can be mounted in any position.

ASCO 8210: The ASCO 8210 is available in a wide range of pressure ratings and sizes, and features tough materials to prevent internal leakage. High flow configuration makes this valve ideal for liquid, gas, air, and corrosive applications (such as car wash, laundry equipment, and industrial water control). Nominal ambient temperature range– AC: 32 degrees to 125 degrees Fahrenheit; DC: 32 to 77 degrees Fahrenheit. Features NBR or PTFE seals and discs, 302 stainless steel springs, 305 stainless steel core tube, and silver or copper shading coil.

ASCO 8262: Available–standard–with tapped mounting holes, this solenoid valve features a welded core tube, small poppet valves, NBR or cast UR seals and discs, and is ideal for high flow applications. Core and plugnut are 430F stainless steel. Nominal ambient temp range– AC: -13F to 131 degrees F; DC: -13F to 104F.

ASCO 8345: Ideal for when low-flow is sufficient, this 4-way solenoid valve features a 305 stainless steel core tube, a 430F stainless steel core and plugnut, and a PA piston. Seals and discs are dependent on body material: NBR and PA for brass; FKM, PA, and UR for 316 stainless steel bodies. Nominal ambient temperature range– AC: 32F to 125F; DC: 32F to 104F.
