Kunkle Valves is a leading manufacturer of quality safety and relief valve products for industrial and commercial applications. Kunkle products are available for ASME Section I, Section IV and Section VIII services with relief capacities certified by the National Board.

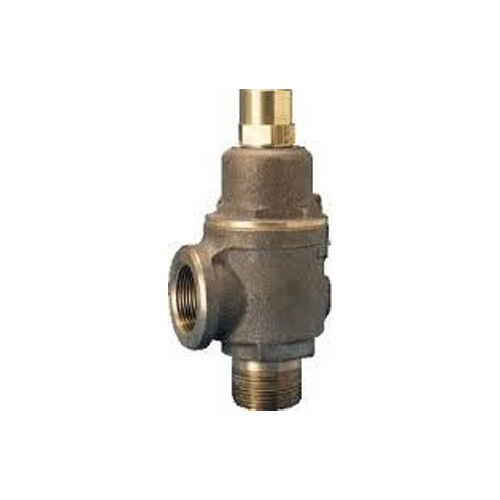

Bronze Relief Valve for Liquid Service – Model 20
  • Extra heavy, rugged construction.
  • Both inlet and outlet connections are cast integral with body to permit easy inspection and servicing without disconnecting piping.
  • Seats lapped for optimum performance.
  • Spherical pivot between disc and spring corrects misalignment and compensates for spring side thrust

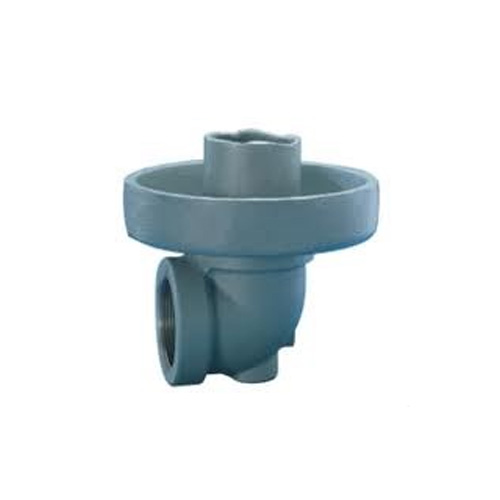

Drip Pan Elbow – Model 299
  • For safety valves with flanged outlets – 2″ to 4″ – use companion flange, short nipple and drip pan elbow, all same size as valve outlet.
  • 6″ and 8″ elbows have integral 125# ANSI B16. 1 Flange.
  • Important – Length of discharge piping must be kept to a minimum.
Safety Valve for Hot Water Heating Boilers – Model 537
  • Extra heavy construction provides long life.
  • Top guided disc assembly incorporates resilient seal in seating area.
  • Working parts are protected from corrosion by discharged liquid by an isolation diaphragm.
  • Pivot between disc assembly and stem corrects for misalignment and compensates for spring side thrust.
  • Heavy duty lift lever.

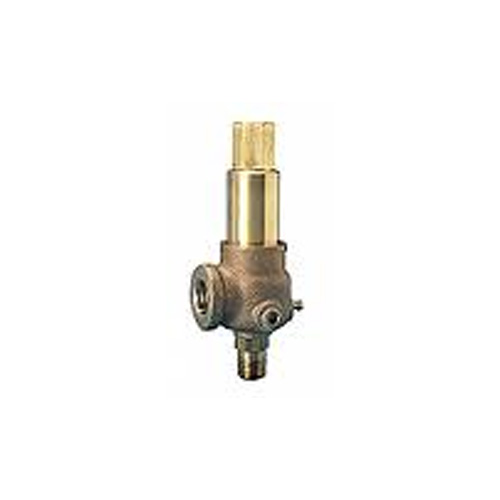

Bronze, Steel and Stainless Steel Safety Relief Valve for Air, Gas, Steam, Liquid and Vacuum Service – Models 910, 911, 912, 913
  • Valve housing is heavy duty cast steel, stainless steel or bronze.
  • Standard spring material is stainless steel suitable for temperatures to 550 degrees F.
  • High temperature alloy spring good to 800 degrees F.
  • Hex on valve nozzle provides for easy installation.
  • Single control ring offers easy adjustability of blowdown.
  • Pivoting disc design offers exceptional seat alignment.
  • Seats lapped to optical flatness.
  • Guide-to-nozzle ration reduces friction.

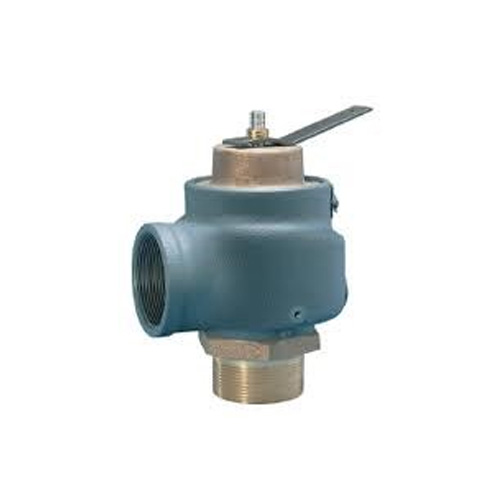

Iron Safety Valve for Steam Heating Boilers – Model 930
  • Extra high capacity for industrial, commercial and residential low pressure, steam heating boilers.
  • Cast iron with bronze nozzle, disc and guide.
  • Large seat area/guide area ratio, along with pivot design insures top valve performance.
  • Flat bronze valve seats are lapped for optimum performance.
  • Reversible lift lever for “pull-up” or “pull-down” manual testing.

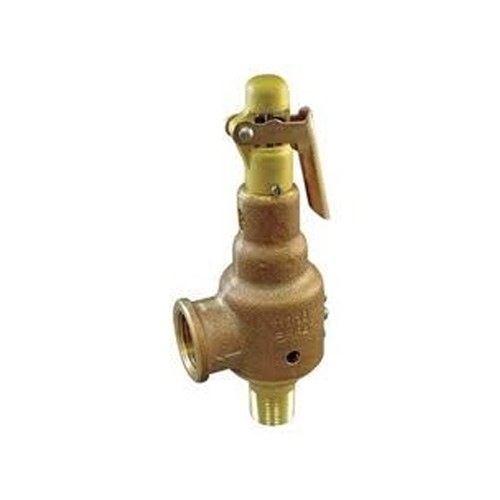

Bronze Safety Valve for Air Steam, Non-Hazardous Gas – Series 6010 and 6021
  • Valve housing is heavy duty casting.
  • Wide hex on valve body provides clearance for easy installation.
  • Seats lapped to optical flatness.
  • Dual control rings offer easy adjustability for precise opening with minimum pre-open or simmer and exact blowdown control.
  • Ball bearing pivot between disc and spring corrects misalignment and compensates for spring side thrust.
  • Grooved piston type disc reduces sliding area and friction.
  • Heavy duty lift lever assembly.
  • Model 6010 provided with optional resilient O-ring seat for superior leak-free perfomance.
  • Model 6021 offer Teflon (PFA) disc insert for exceptional leak-free (use on steam only).
Iron Safety Valves for Air Steam, Non-Hazardous Gas Service – Model 6252
  • Heavy duty construction of high quality cast iron with stainless steel semi-nozzle trim.
  • Bolted bonnet design for easy maintenance.
  • Seats lapped to optical flatness.
  • Dual control rings offer easy adjustability for precision opening with minimum pre-open or simmer and exact blowdown control.
  • Heavy duty lift lever assembly.
TRIVACO is an authorized Kunkle Valve Assembler and maintains ready-to-ship inventory at competitive prices.

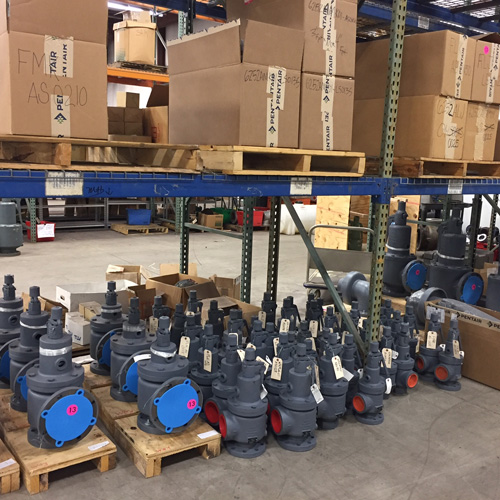

  • 6252 inventory
  • Ready to ship or be assembled and shipped
  • Over $300K worth of inventory on hand
